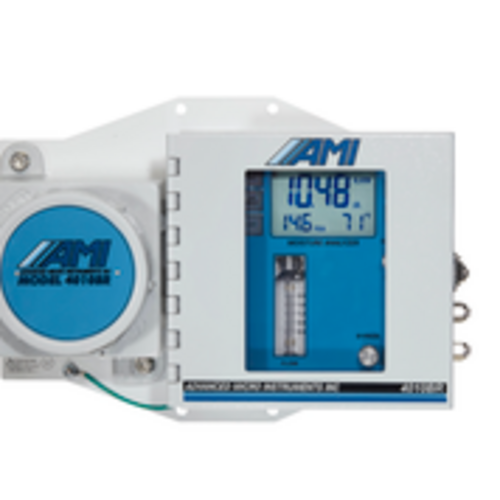

4010LX TDL MOISTURE ANALYZER AC POWER

Code: 470482

Status: Out of Stock

Call

EACH (1)

FEATURES

FEATURES



Eliminator Cell Block with Component Call-Outs

MODEL 4010LX connected to the COMMAND CENTER Software

ALL THE ADVANCED FEATURES FOR ONE LOW PRICE

The BARRACUDA MODEL 4010LX comes loaded with all the advanced features at a fraction of the cost of other TDL analyzers. Standard features include dual independent alarm relay contacts, comprehensive alarm logic (fail safe or non-fail safe, latching or non-latching and independent alarm delays), alarm bypass, and 3 levels of security settings. When connected to AMI’s powerful COMMAND CENTER software, operators can customize alarm configurations, download time-stamped data log information, review error codes, and realign the laser absorption peaks using our SMART ALIGNMENT protocol.

moisture analyzer in the rain at a remote installation

(Remote Installation powered by a standard solar panel)

DESIGNED FOR DIFFICULT FIELD INSTALLATIONS

The compact design of the MODEL 4010LX and light weight of only 17 lbs allow for easy installation in tight areas by a single technician. An IP-65 rating permits installations for indoors or outside in harsh elements. Available in AC or DC power. Low DC power requirements allow for operation using a solar panel. Finally, the unit can be installed in our Extreme Weather Enclosure for additional protection.

Eliminator Cell Block with Component Call-Outs

Transparent View of ELIMINATOR CELL BLOCK

PATENTED ELIMINATOR HERRIOTT CELL BLOCK WITH ANALYZER GUARDIAN

The patented ELIMINATOR HERRIOTT CELL BLOCK with ANALYZER GUARDIAN integrates a low volume sample gas measurement laser cell, flow meter, metering valves and Analyzer Guardian liquid rejection technology into a compact-stacked block. Our innovative design keeps the total analyzer size small, eliminates the use of leak-prone fittings and tubing and makes the MODEL 4010LX‘s gas path short to provide fast and accurate moisture readings.

Herriot Laser Cell

AMI's Herriot Laser Cell

OPTIMIZING MEASUREMENT IN A COMPACT LASER CELL

THE BEER-LAMBERT LAW shows that a longer laser path will yield greater sample gas absorbance, resulting in a more accurate & precise moisture measurement.

Beer-Lambert Law

AMI’s uniquely small Herriot Laser Cell Design utilizes a multi-pass laser path, providing significantly more measurement capabilities compared to a single-pass cell design. This results in an incredibly accurate and precise moisture measurement in an extremely compact laser chamber.

AMI Analyzer Guardian

AMI's Analyzer Guardian

PROTECTION AGAINST WATER SLUGS

ANALYZER GUARDIAN Technology allows for sample gas to pass through the Herriott Cell while rejecting particulates, water, compressor oils and glycols. This design will completely seal off and protect the 4010LX if a large liquid slug reaches the analyzer.

Eliminator Cell Block short Gas Path

Gas travels a short 4 inches within our patented ELIMINATOR CELL BLOCK.

FASTEST RESPONSE TIMES

The entire gas path is contained within our patented ELIMINATOR CELL BLOCK. The gas travels a short 4 inches from the Sample Gas Inlet before entering the laser measurement cell, resulting in a fast, accurate and stable reading.

Field Servicebale Design

Clean the reflective mirrors of the Herriott Cell in the field.

FIELD SERVICABLE DESIGN

The 4010LX design allows for the user to clean the reflective mirrors of the Herriott Cell in the field in the unlikely event liquids or particulates break through our protective membrane. Additionally, users can easily re-align the laser absorption peaks using AMI’s COMMAND CENTER software.

SPECIFICATIONS

SPECIFICATIONS

Physical & Electrical Specifications
WEIGHT MOUNTING GAS CONNECTIONS WETTED
PARTS
17.0 lbs
(7.7 kg)		 Wall Mount
or 2.0” Pipe		 ¼” 316 S.S.
compression
fittings		 316 S.S. fittings, electro-less nickelplated cell blocks, Teflon®-based liquid rejection membrane, acrylic flow meter & O-rings (Viton and Buna-N)
POWER
DC AC
10 – 28 VDC, 1.2 amps max 110 – 120 VAC, 500 mA max
model-4010br dimensions
Note: 2-year Warranty for Parts & Labor for any defects in materials or workmanship.
Operational Specifications
MEASUREMENT RANGE AMBIENT OPERATIONAL
TEMPERATURE		 FLOW RATE
(RECOMMENDED)		 INLET GAS
PRESSURE
0.25 – 20.0 lbs (5.25 – 420 ppm) H2O 20°F to 120°F (–6.7°C to 49°C) 1.0 to 2.0 SCFH (0.5 – 1.0 Lpm) 1.0 − 20.0 psig (0.07 − 1.4 bar)
Analyzer Performance Specifications
90% RESPONSE TIMES REPEATABILITY APPROVALS
<2 sec ±1% of range or ±0.25 lbs (±5.25 ppm) of H2O, whichever is greater CSA-approved for Class 1, Div. 1, Groups C & D, T3A
Analyzer Key Features
ELIMINATOR CELL BLOCK With a Complete Integrated Sample System (including flow meter, sample metering valve, bypass metering valve, pressure transducer, termperature transducer, liquid rejection membrane, and Sample Measurement Cell)
ALARMS
2 fully adjustable concentration alarms with configurable Alarm logic and Relay Contacts, featuring:
  • Alarm Bypass
  • Latching/Non-latching
  • Alarm Delays
  • Failsafe/Non-failsafe
  • Trigger Above or Below Setpoint
  • Open or Close on Alarm
ANALOG OUTPUTS 1 − 5 VDC and 4 − 20mA isolated output signals and Modbus bi-directional RS485 communication
COMMAND CENTER Software that works across AMI’s Analyzers and gives users access to advanced functions:
  • Error Status Display
  • Alarm Configurations
  • SMART REALIGNMENT of signature H2O and methane peaks
  • Data Logger with time-stamped records of moisture readings,
    temperature, brown-outs and pressure as well as security settings
