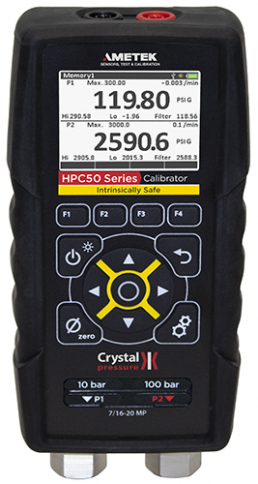

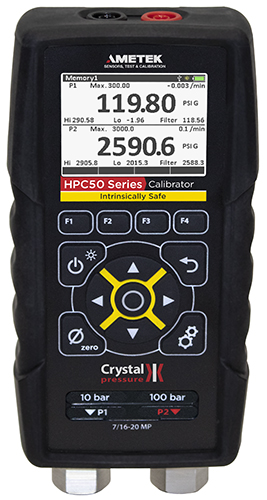

HPC52 30-3000 PSI SERIES PRESSURE CRYSTAL CALIBRATOR

The HPC50 handheld pressure calibrator is an intrinsically safe, dual pressure calibrator with options to add an additional two external pressure or temperature modules. The HPC50 pressure calibrator combines the features you love from the HPC40 with improvements like, better battery life an improved display, an extra external module connection, and of course intrinsic safety.

The HPC50 series pressure calibrator is fully temperature compensated for pressure, temperature, and electrical measurements from -20 to 50°C.

• 0.035% of Reading Accuracy
• Gauge, Absolute, and Differential Pressure to 10,000 psi / 700 bar / 70 MPa
• Advanced Simplicity "Non-Menu" Interface
• Measure Sink mA and V
• High Accuracy Thermometer with "True Ohm" Technology
• Store & Recall Previously Used Screens

Combine the HPC50 Series with any of our ready to use pump systems, to provide a complete calibration kit.

Accessories

•



  • APMi-Pressure-Modules 8 ranges from vacuum to 15 000 psi / 1000 bar
•




  • ATMi-Temperature-Module Add temperature measurement to the HPC50 Series
•




  • 104203 Test Leads with Black and Red Clips (included)
•




  • 6215 Protective Boot (included)
•




  • 3951 USB A to Mini USB Cable for HPC40 Series, HPC50 Series, and nVision (included)
•




  • 5203 Magnetic Hanging Strap for XP2i, m1, 30 Series, HPC40 Series, and HPC50 Series
•




  • 3009 Hard Carrying Case – egg crate foam
•




  • 2888 Weatherproof Hard Carrying Case – die cut foam
•




  • 128955 RTD Probe, Pt100

Software

• CrystalControl

  CrystalControl – Free Software, Communicate, Configure, Data Log (nVision), and Update your nVision, HPC40, HPC50

• UnitCalc

  UnitCalc (Free) – Easy pressure unit calculator. Displays all conversion factors and converted units at the same time. UnitCalc also calculates Head Correction, Gravity Correction, and Air Density
