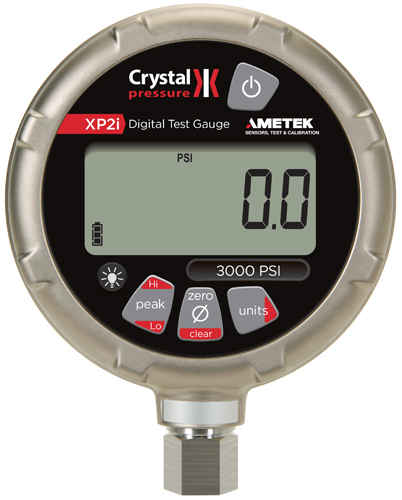

3KPSIXP2IS CRYSTAL DIGITAL GAUGE 3000# I/S

Code: 37985

Status: Out of Stock

US$1,440.00
EACH (1)

FEATURES

FEATURES

The World’s Most Popular Test Gauge

Ultra rugged, intrinsically safe, digital test gauge with 0.1% of reading, 0.02% of full scale, or 0.05% of full scale accuracy levels.

• New low pressure absolute ranges! 16 psia version now available!
• Now available to 15 000 psi
• Marine grade enclosure resists corrosion
• Accuracy not affected from -10 to 50°C
• Replaces 5 or more digital test gauges
• Fast pressure safety valve (PSV) mode
• Easy to use – No Menu. No Manual? No Problem!
• Now available with a discounted re-calibration program

With the optional DataLoggerXP upgrade

• New! Now includes calibration reminders and alerts
• Record 32 000 data points
• Over an entire year of continuous recording time
• Now available on the Dual-Line Display XP2i


ADDITIONAL INFO

ADDITIONAL INFO

Accessories



  •


    • 5203 Magnetic Hanging Strap for XP2i, m1, 30 Series, HPC40 Series, and HPC50 Series
  •


    • 3193 Digital Pressure Gauge Protective Boot – 1 Generation Gauge (Black Gasket around Gauge) – A Skydrol compatible elastomeric boot to increase shock resistance.
  •


    • 3696 Digital Pressure Gauge Protective Boot – 2nd/3rd Generation Gauge (No Black Gasket around Gauge) – A Skydrol compatible elastomeric boot to increase shock resistance.
  •


    • 3009 Hard Carrying Case – egg crate foam
  •


    • 2888 Weatherproof Hard Carrying Case – die cut foam
  •


    • 2400 RS232 Cable (6ft)
  •


    • 3456 Null Modem Adapter – A null modem for differential pressure testing between two XP2i gauges.
  •


    • 3313 USB A to RS232 DB9M Adapter for XP2i
  •


    • 2955 Flange Adapter Kit – 6 inch flange adapter kit. Requires a gauge with the –F4 panel mount option.
  •


    • 2956 Flange Adapter Kit – 8.5 inch flange adapter kit. Requires a gauge with the –F4 panel mount option.
  •


    • 2984 Universal AC Power Supply – Includes a set of plugs permitting use worldwide. In the event of a power failure, and XP2i powered by the AC power supply will automatically switch to its internal batteries.



additional 2

additional 2

Software



  • DataLoggerXP

    DataLoggerXP – Allows you to record up to 32 000 measurements. The software application handles all of the transfer and saving of data to your computer’s hard drive, while the XP2i once authorized, performs all of the actual data collection. You can also use the software to update your gauge to the latest firmware.

  • ConFigXP

    ConFigXP (Free) – Allows you to customize your gauge by adding or disabling features.

  • FastCalXP

    FastCalXP – Calibration software that allows you to do a 10 point up and down calibration in less than 3 minutes.

  • JofraCal

    JofraCal (Free) - Calibration software for easy calibration of RTDs, thermocouples, transmitters, thermo switches, pressure gauges, and pressure switches.

  • USB Driver

    USB Driver for XP2i, nVision, and 30 Series

  • UnitCalc

    UnitCalc (Free) – Easy pressure unit calculator. Displays all conversion factors and converted units at the same time. UnitCalc also calculates Head Correction, Gravity Correction, and Air Density
