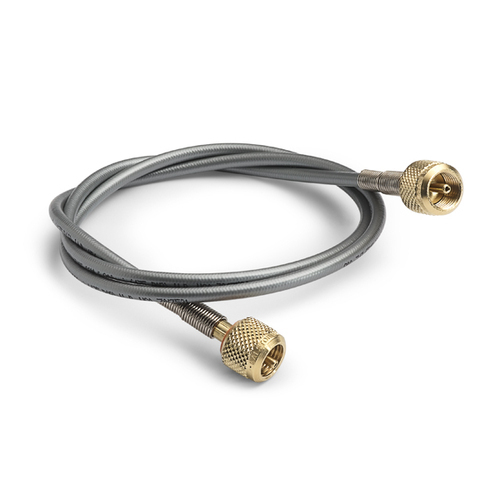

QTQT-HOS-8FT RALSTON QT 6900 PSI HOSE BRASS ENDS 8 FT

Code: 36885

Status: Out of Stock

US$94.04
EACH (1)

FEATURES

FEATURES

Microbore hoses that provide a very quick, low volume, high pressure way of connecting to any pressure instrumentation, hand pump, calibration source or device under test.

SPECIFICATIONS

SPECIFICATIONS

Burst Pressure 27000 PSI / 1860 bar / 185 MPa
Color Silver
Country of origin USA
Fluid Media Air,Inert Gas,Natural Gas,Petroleum Based Oil,Water
Hose Length 8 ft / 2.44 m
Inner Diameter 0.08 In / 3.00 mm
Length 8 ft / 3.00 m
Materials Brass
Max Operating Temperature 140 °F / 60 °C
Max Pressure 6900 PSI / 475 bar / 48 MPa
Max Vacuum -30 InHg / -101.6 kPa
Media Compatibility Air, Inert Gas, Natural Gas, Petroleum Based Oil, Water
Min Operating Temperature -40 °F / -40 °C
Minimum Bend Radius 1 In / 26 mm
Outer Diameter 0.2 In / 6.00 mm
Type QT
Hose End 1
Female Quick-test, brass
Hose End 2
Female Quick-test, brass
