QTQT-HOS-50FT RALSTON QT 6900 PSI HOSE BRASS ENDS 50 FT

Code: 36991

Status: Out of Stock

US$353.60
EACH (1)

FEATURES

FEATURES

Microbore hoses that provide a very quick, low volume, high pressure way of connecting to any pressure instrumentation, hand pump, calibration source or device under test

SPECIFICATIONS

SPECIFICATIONS

Burst Pressure 27000 PSI / 1860 bar / 185 MPa
Color Silver
Country of origin USA
Fluid Media Air,Inert Gas,Natural Gas,Petroleum Based Oil,Water
Hose Length 50 ft / 15.24 m
Inner Diameter 0.08 In / 3.00 mm
Length 50 ft / 16 m
Materials Brass
Max Operating Temperature 140 °F / 60 °C
Max Pressure 6900 PSI / 475 bar / 48 MPa
Max Vacuum -30 InHg / -101.6 kPa
Media Compatibility Air, Inert Gas, Natural Gas, Petroleum Based Oil, Water
Min Operating Temperature -40 °F / -40 °C
Minimum Bend Radius 1 In / 26 mm
Outer Diameter 0.2 In / 6.00 mm
Type QT
Hose End 1
Female Quick-test, brass
Hose End 2
Female Quick-test, brass

INCLUDES

INCLUDES

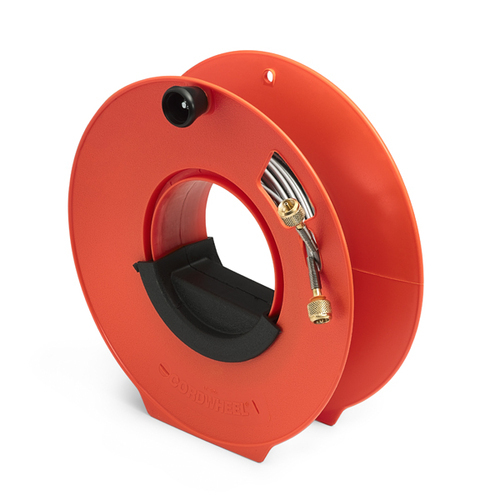

ABS plastic reel for hoses 50 ft (15 meters) and longer

The product images shown may represent the range of product, or be for illustration purposes only and may not be an exact representation of the product
