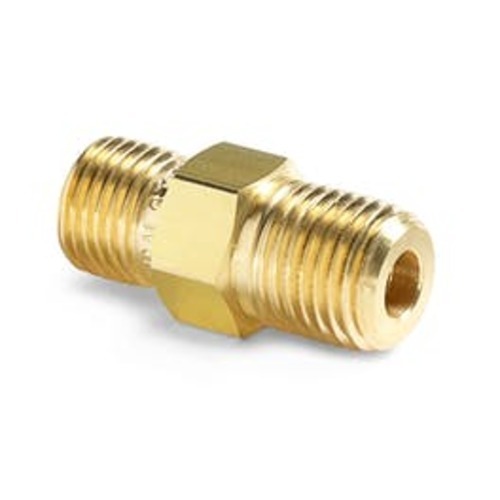

QTHA-2MB1 RALSTON 1/4" MNPT X MALE QT W/ CHECK-VALVE BRASS

Code: 36993

Status: Out of Stock

US$18.73
EA (1)

FEATURES

FEATURES

Connects Female NPT to Quick-test hoses with brass or stainless steel hose ends.

SPECIFICATIONS

SPECIFICATIONS

Length 1.29 in / 33 mm
Width 0.56 in / 15 mm
Country of origin USA
Has Check Valve Yes
Materials Brass
Max Operating Temperature 225 °F / 105 °C
Max Pressure 3000 PSI / 200 bar / 20 MPa
Max Vacuum 0 InHg / 0.0 kPa
Min Operating Temperature 0 °F / -18 °C
Seal Materials Buna-N
Wrench Size 9/16 In / 15 mm
Wrench Size 15 mm / 9/16 in
End 1 Connector
1/4" Male NPT (ASME B1.20.1)
End 2 Connector
Male Quick-test

The product images shown may represent the range of product, or be for illustration purposes only and may not be an exact representation of the product
