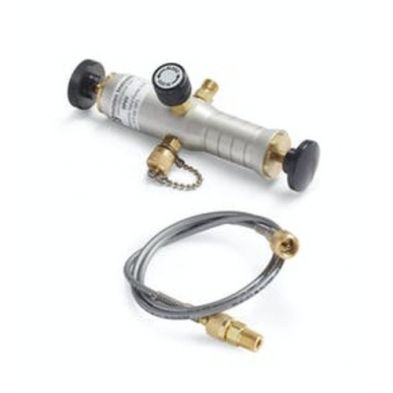

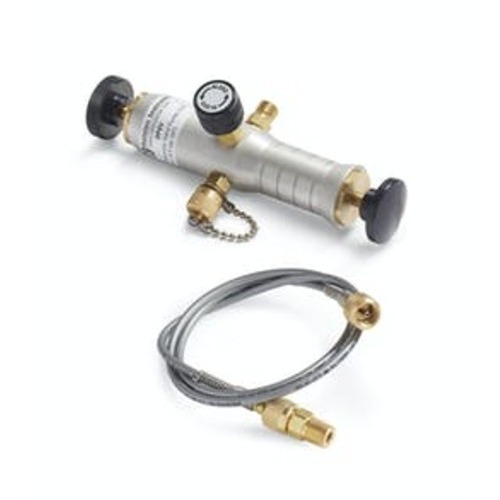

DP0V-0000 RALSTON DPOV AIR PUMP

Code: 37001

Status: Out of Stock

US$446.46
EACH (1)

FEATURES

FEATURES

The ideal solution for very precise low pressure calibration or differential pressure testing using an external pressure calibrator as the reference

  • Hand Pump: DP0V Pneumatic Hand Pump
  • Process Connection: 1/4" male NPT x male Quick-test, no check-valve, brass
  • Hose: Quick-test 6900 psi hose, brass hose ends, 3 ft (92 cm) long

SPECIFICATIONS

SPECIFICATIONS

Country of origin USA
Pressure Reference None
Process Connection 1/4" Male NPT
Reference Connection None
Max Pressure 125 PSI / 8.6 bar / 860 kPa
Max Vacuum 0 InHg / 0.0 kPa
Materials Anodized Aluminum, Brass, Stainless Steel
Seal Materials Buna-N, Delrin, Teflon
Min Operating Temperature 0 °F / -18 °C
Max Operating Temperature 130 °F / 54 °C

Hand Pump DP0V

Weight 1.60 lbs / 725 grams
Length 2.9 in / 74 mm
Width 8 in / 21 cm
Height 3.4 in / 87 mm
Max Pressure 125 PSI / 8.6 bar / 860 kPa
Min Operating Temperature 0 °F / -18 °C
Max Operating Temperature 130 °F / 54 °C
Pressure Media Air
Fine Adjustment Resolution 0.01 PSI / 0.07 mbar / 0.00 kPa
Burst Pressure 1000 PSI / 70 bar / 7.00 MPa
Media Compatibility Air, Inert Gas, Natural Gas
Outlet Port Male Quick-test, Male Quick-test with cap and chain
Country of origin USA
Harmonized Code 8414.20.0000
Materials Anodized Aluminum, Brass
Seal Materials Buna-N, Delrin

Process Connection QTHA-2MB0

Length 1.29 in / 33 mm
Width 0.56 in / 15 mm
Burst Pressure 20000 PSI / 1380 bar / 140 MPa
Country of origin USA
Materials Brass
Max Operating Temperature 225 °F / 105 °C
Max Pressure 5000 PSI / 350 bar / 35 MPa
Max Vacuum 0 InHg / 0.0 kPa
Min Operating Temperature 0 °F / -18 °C
Seal Materials Buna-N
Wrench Size 9/16 In / 15 mm
Wrench Size 15 mm / 9/16 in
End 1 Connector
1/4" Male NPT (ASME B1.20.1)
End 2 Connector
Male Quick-test

Hose QTQT-HOS-3ft

Burst Pressure 27000 PSI / 1860 bar / 185 MPa
Color Silver
Country of origin USA
Fluid Media Air,Inert Gas,Natural Gas,Petroleum Based Oil,Water
Hose Length 3ft / 0.91 m
Inner Diameter 0.08 In / 3.00 mm
Length 3 ft / 92 cm
Materials Brass
Max Operating Temperature 140 °F / 60 °C
Max Pressure 6900 PSI / 475 bar / 48 MPa
Max Vacuum -30 InHg / -101.6 kPa
Media Compatibility Air, Inert Gas, Natural Gas, Petroleum Based Oil, Water
Min Operating Temperature -40 °F / -40 °C
Minimum Bend Radius 1 In / 26 mm
Outer Diameter 0.2 In / 6.00 mm
Type QT
Hose End 1
Female Quick-test, brass
Hose End 2
Female Quick-test, brass

INCLUDES

INCLUDES

DP0V Pneumatic Hand Pump

Hand Pump

DP0V

1/4" male NPT x male Quick-test, no check-valve, brass

Process Connection

QTHA-2MB0

Quick-test 6900 psi hose, brass hose ends, 3 ft (92 cm) long

Hose

QTQT-HOS-3ft
