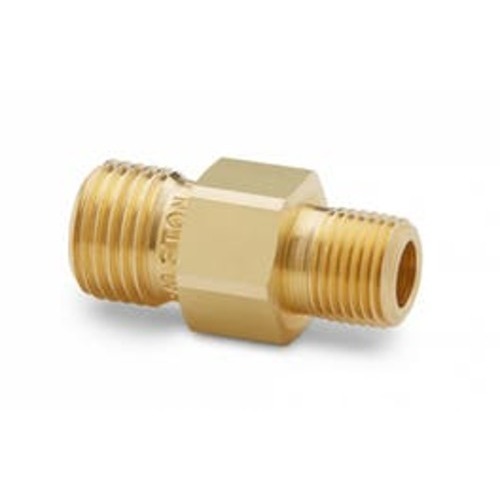

QTHA-1MB0 RALSTON 1/8" MNPT X MALE QT BRASS

Code: 37016

Status: Out of Stock

US$13.46
EACH (1)

FEATURES

FEATURES

Connects Female NPT to Quick-test hoses with brass or stainless steel hose ends.

SPECIFICATIONS

SPECIFICATIONS

Length 1.2 in / 31 mm
Width 0.56 in / 15 mm
Country of origin USA
Materials Brass
Max Operating Temperature 225 °F / 105 °C
Max Pressure 5000 PSI / 350 bar / 35 MPa
Max Vacuum 0 InHg / 0.0 kPa
Min Operating Temperature 0 °F / -18 °C
Seal Materials Buna-N
Wrench Size 9/16 In / 15 mm
Wrench Size 15 mm / 9/16 in
End 1 Connector
1/8" Male NPT (ASME B1.20.1)
End 2 Connector
Male Quick-test
