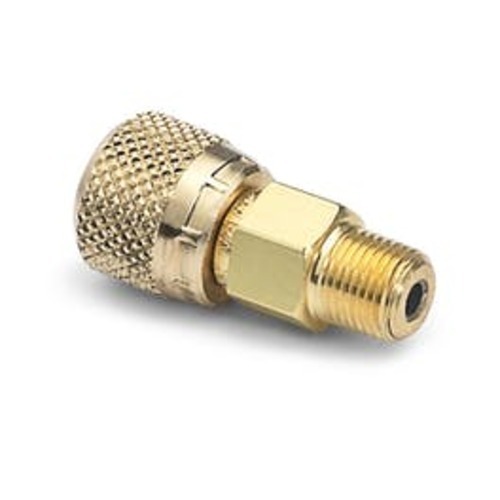

QTHA-1MBA RALSTON 1/8" MNPT X FEMALE QT BRASS

Code: 37017

Status: Out of Stock

US$18.84
EACH (1)

FEATURES

FEATURES

Quickly connect a pressure calibrator or other pressure device with Female NPT connections to Ralston hand pumps or nitrogen calibration equipment

SPECIFICATIONS

SPECIFICATIONS

Length 1.55 in / 40 mm
Width 0.7 in / 18 mm
Country of origin USA
Materials Brass
Max Operating Temperature 225 °F / 105 °C
Max Pressure 5000 PSI / 350 bar / 35 MPa
Max Vacuum 0 InHg / 0.0 kPa
Wrench Size 9/16 In / 15 mm
Wrench Size 15 mm / 9/16 in
End 1 Connector
1/8" Male NPT (ASME B1.20.1)
End 2 Connector
Female Quick-test
