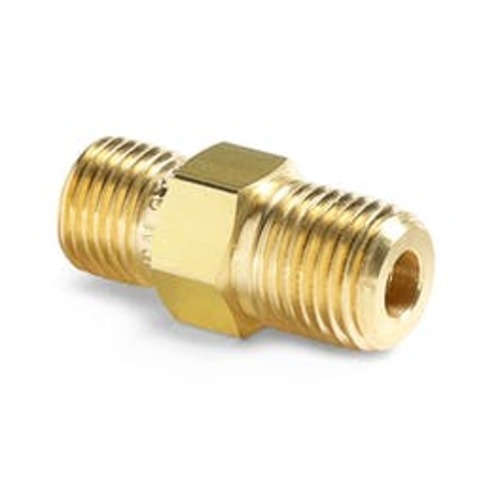

QTHA-2MB0 RALSTON 1/4" MNPT X MALE QT BRASS

Code: 37018

Status: In Stock

US$12.40
EACH (1)

FEATURES

FEATURES

Connects Female NPT to Quick-test hoses with brass or stainless steel hose ends.

SPECIFICATIONS

SPECIFICATIONS

Length 1.29 in / 33 mm
Width 0.56 in / 15 mm
Burst Pressure 20000 PSI / 1380 bar / 140 MPa
Country of origin USA
Materials Brass
Max Operating Temperature 225 °F / 105 °C
Max Pressure 5000 PSI / 350 bar / 35 MPa
Max Vacuum 0 InHg / 0.0 kPa
Min Operating Temperature 0 °F / -18 °C
Seal Materials Buna-N
Wrench Size 9/16 In / 15 mm
Wrench Size 15 mm / 9/16 in
End 1 Connector
1/4" Male NPT (ASME B1.20.1)
End 2 Connector
Male Quick-test

The product images shown may represent the range of product, or be for illustration purposes only and may not be an exact representation of the product
