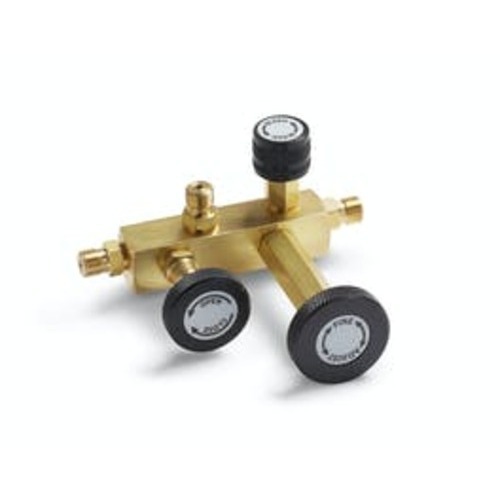

QTCM-2FBA-20-2 RALSTON QTCM MANIFOLD

Code: 37033

Status: Out of Stock

US$668.29
EACH (1)

FEATURES

FEATURES

Attach a gauge or pressure calibrator directly to the calibration manifold and easily perform static pressure calibrations (pressure gauge not included)

  • Manifold: QTCM Brass Calibration Manifold
  • Reference Connection: 1/4" female NPT x female Quick-test, no check-valve, brass
  • Process Connection 1: 1/4" male NPT x male Quick-test, no check-valve, brass
  • Process Connection 2: 1/4" male NPT x male Quick-test, no check-valve, brass
  • Hose 2: Quick-test 6900 psi hose, brass hose ends, 2 ft (61 cm) long
  • Hose 1: Quick-test 6900 psi hose, brass hose ends, 20 ft (6.10 m) long
  • Bag: Zippered bag to hold hose and adapters, nylon

SPECIFICATIONS

SPECIFICATIONS

Max Pressure 3000 PSI / 200 bar / 20 MPa
Materials Anodized Aluminum, Brass
Seal Materials Buna-N, Delrin, Teflon
Min Operating Temperature 0 °F / -18 °C
Max Operating Temperature 130 °F / 54 °C
Hose 1 Quick-test Hose, Brass ends, 20ft / 6.1m long
Hose 2 Quick-test Hose, Brass ends, 2ft / 0.6m long
Pressure Reference None
Process Connection 1/4" Male NPT
Country of origin USA
Reference Connection 1/4" Female NPT

Manifold QTCM

Weight 2.20 lbs / 1000 grams
Length 3.8 in / 97 mm
Width 5.1 in / 13 cm
Height 2.3 in / 59 mm
Max Pressure 3000 PSI / 200 bar / 20 MPa
Min Operating Temperature 0 °F / -18 °C
Max Operating Temperature 130 °F / 54 °C
Fine Adjustment Resolution 0.1 PSI / 0.69 mbar / 0.00 kPa
Harmonized Code 9032.81.0060
Country of origin USA
Pressure Media Nitrogen, inert gas
Inlet Port Male Quick-test
Materials Anodized Aluminum, Brass
Media Compatibility Air, Inert Gas, Natural Gas
Outlet Port Male Quick-test
Seal Materials Buna-N, Delrin, Teflon
Burst Pressure 12000 PSI / 825 bar / 83 MPa

Reference Connection QTHA-2FBA

Length 1.52 in / 39 mm
Width 0.75 in / 20 mm
Country of origin USA
Materials Brass
Max Operating Temperature 225 °F / 105 °C
Max Pressure 5000 PSI / 350 bar / 35 MPa
Max Vacuum 0 InHg / 0.0 kPa
Wrench Size 3/4 In / 20 mm
Wrench Size 19 mm / 23/32 in
End 1 Connector
1/4" Female NPT (ASME B1.20.1)
End 2 Connector
Female Quick-test

Process Connection 1 QTHA-2MB0

Length 1.29 in / 33 mm
Width 0.56 in / 15 mm
Burst Pressure 20000 PSI / 1380 bar / 140 MPa
Country of origin USA
Materials Brass
Max Operating Temperature 225 °F / 105 °C
Max Pressure 5000 PSI / 350 bar / 35 MPa
Max Vacuum 0 InHg / 0.0 kPa
Min Operating Temperature 0 °F / -18 °C
Seal Materials Buna-N
Wrench Size 9/16 In / 15 mm
Wrench Size 15 mm / 9/16 in
End 1 Connector
1/4" Male NPT (ASME B1.20.1)
End 2 Connector
Male Quick-test
