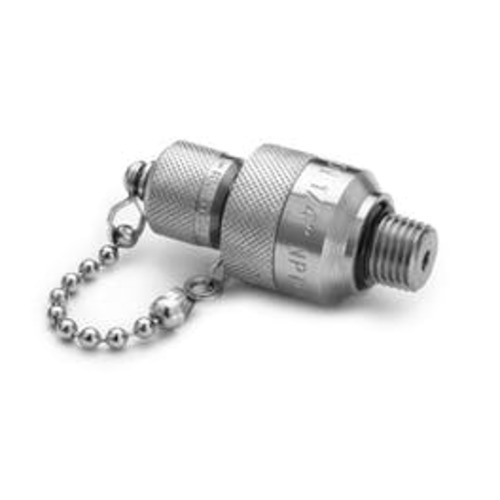

QTFT-2MS0-QD RALSTON 1/4" MALE NPT QD FITTING SS

Code: 370450

Status: Out of Stock

US$97.86
EACH (1)

FEATURES

FEATURES

Make calibrating pressure transmitters a snap by eliminating the need for thread sealant or wrenches when connecting to any female NPT connection

SPECIFICATIONS

SPECIFICATIONS

Length 2.34 in / 60 mm
Width 1 in / 26 mm
Country of origin USA
Materials Stainless Steel
Max Operating Temperature 225 °F / 105 °C
Max Pressure 5000 PSI / 350 bar / 35 MPa
Min Operating Temperature 0 °F / -18 °C
Seal Materials Buna-N
End 1 Connector
1/4" Male NPT (ASME B1.20.1)
End 1 Quick Disconnect Yes
End 2 Connector
Male Quick-test
End 2 Cap and Chain Yes

ADDITIONAL INFO

ADDITIONAL INFO

Replacement seal kit for QTHA-2MS0-QD and QTFT-2MS0-QD

Replacement seal kit for QTHA-2MS0-QD and QTFT-2MS0-QD

QTHA-2MS0-SK
