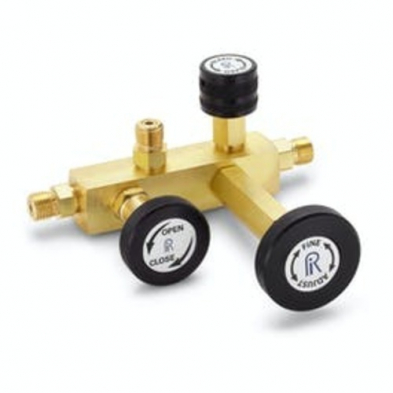

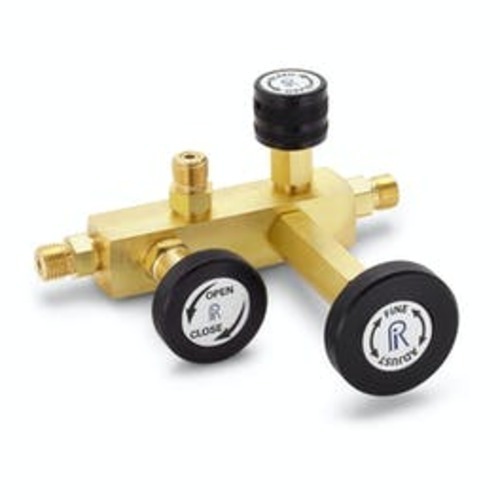

QTCM-0000 RALSTON MANIFOLD ONLY

Code: 37046

Status: Out of Stock

US$357.18
EACH (1)

FEATURES

FEATURES

The most economical way of performing static pressure calibrations in the field using nitrogen or other compressed gas.

  • Manifold: QTCM Brass Calibration Manifold

SPECIFICATIONS

SPECIFICATIONS

Max Pressure 3000 PSI / 200 bar / 20 MPa
Materials Brass
Seal Materials Buna-N, Delrin, Teflon
Min Operating Temperature 0 °F / -18 °C
Max Operating Temperature 130 °F / 54 °C
Hose 1 None
Hose 2 None
Pressure Reference None
Process Connection None
Reference Connection None
Country of origin

USA







INCLUDES

INCLUDES

QTCM Brass Calibration Manifold

Manifold

QTCM

ADDITIONAL INFO

ADDITIONAL INFO

Manifold QTCM

Weight 2.20 lbs / 1000 grams
Length 3.8 in / 97 mm
Width 5.1 in / 13 cm
Height 2.3 in / 59 mm
Max Pressure 3000 PSI / 200 bar / 20 MPa
Min Operating Temperature 0 °F / -18 °C
Max Operating Temperature 130 °F / 54 °C
Fine Adjustment Resolution 0.1 PSI / 0.69 mbar / 0.00 kPa
Harmonized Code 9032.81.0060
Country of origin USA
Pressure Media Nitrogen, inert gas
Inlet Port Male Quick-test
Materials Anodized Aluminum, Brass
Media Compatibility Air, Inert Gas, Natural Gas
Outlet Port Male Quick-test
Seal Materials Buna-N, Delrin, Teflon
Burst Pressure 12000 PSI / 825 bar / 83 MPa

additional 2

additional 2

Replacement Parts



QTCM, QSCM manifold repair kit

QTCM-REPK

QTCM calibration manifold body, brass

QTCM-0016

QTCM fill valve assembly, brass

QTCM-0021

Replacement vernier for QTCM manifolds, brass

QTCM-0026

APGV, AP0V, DP0V, DV0V, DPPV, QTCM bleed valve assembly, brass

DP0V-0020

3/8-24 Male SAE X Male Quick-test outlet connection, brass

QTHA-3SB0
