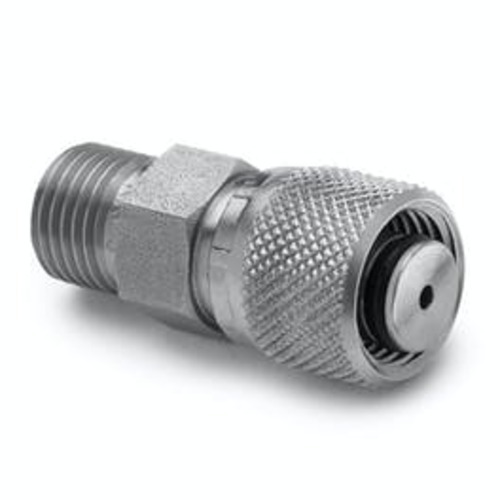

QTHA-3TS0 RALSTON 3/8" TUBE FITTING X MALE QT SS

Code: 37052

Status: Out of Stock

US$73.44
EACH (1)

FEATURES

FEATURES

Connect to any 3/8" tube fitting and perform a calibration without using a wrench

SPECIFICATIONS

SPECIFICATIONS

Length 1.53 in / 39 mm
Width 0.72 in / 19 mm
Country of origin USA
Materials Stainless Steel
Max Operating Temperature 225 °F / 105 °C
Max Pressure 5000 PSI / 350 bar / 35 MPa
Min Operating Temperature 0 °F / -18 °C
Seal Materials Buna-N
End 1 Connector
3/8" Male Tube Fitting
End 1 Quick Disconnect Yes
End 2 Connector
Male Quick-test

ADDITIONAL INFO

ADDITIONAL INFO

Replacement o-ring for QTHA-3TB0 and QTHA-3TS0

QTHA-2010

The product images shown may represent the range of product, or be for illustration purposes only and may not be an exact representation of the product
