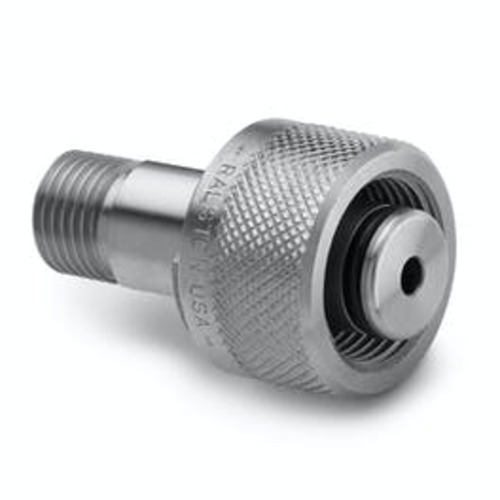

QTHA-4TS0 RALSTON 1/2" TUBE FITTING X MALE QT SS

Code: 37053

Status: Out of Stock

US$84.66
EACH (1)

FEATURES

FEATURES

Connect to any 1/2" tube fitting without using a wrench.

SPECIFICATIONS

SPECIFICATIONS

Length 1.7 in / 44 mm
Width 1 in / 26 mm
Country of origin USA
Materials Stainless Steel
Max Operating Temperature 225 °F / 105 °C
Max Pressure 5000 PSI / 350 bar / 35 MPa
Min Operating Temperature 0 °F / -18 °C
Seal Materials Buna-N
End 1 Connector
1/2" Male Tube Fitting
End 1 Quick Disconnect Yes
End 2 Connector
Male Quick-test

ADDITIONAL INFO

ADDITIONAL INFO

Replacement o-ring for QTHA-4TB0 and QTHA-4TS0

QTHA-2012

The product images shown may represent the range of product, or be for illustration purposes only and may not be an exact representation of the product
