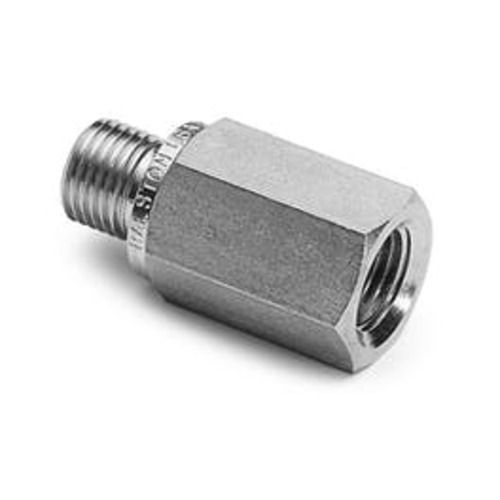

QTHA-2FS0 RALSTON 1/4" FNPT X MALE QT SS

Code: 37065

Status: Out of Stock

US$57.13
EACH (1)

FEATURES

FEATURES

Connect a Quick-test hose to a pressure gauge or any device with a male NPT connection using thread sealant and a wrench

SPECIFICATIONS

SPECIFICATIONS

Length 1.57 in / 40 mm
Width 0.75 in / 20 mm
Country of origin USA
Materials Stainless Steel
Max Operating Temperature 225 °F / 105 °C
Max Pressure 5000 PSI / 350 bar / 35 MPa
Max Vacuum 0 InHg / 0.0 kPa
Seal Materials Buna-N
Wrench Size 3/4 In / 20 mm
Wrench Size 19 mm / 23/32 in
End 1 Connector
1/4" Female NPT (ASME B1.20.1)
End 2 Connector
Male Quick-test

The product images shown may represent the range of product, or be for illustration purposes only and may not be an exact representation of the product
