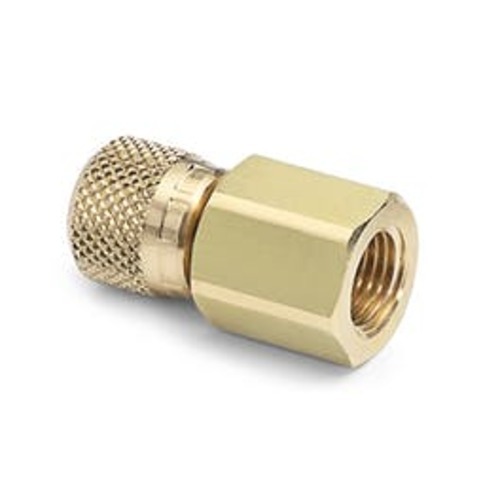

QTHA-1FBA RALSTON 1/8" FNPT X FEMALE QT BRASS

Code: 37068

Status: Out of Stock

US$28.85
EACH (1)

FEATURES

FEATURES

Connect a pressure gauge with a 1/8" Male NPT bottom connection to a Ralston hand pump or pressure source

SPECIFICATIONS

SPECIFICATIONS

Length 1.3 in / 34 mm
Width 0.7 in / 18 mm
Country of origin USA
Materials Brass
Max Operating Temperature 225 °F / 105 °C
Max Pressure 5000 PSI / 350 bar / 35 MPa
Max Vacuum 0 InHg / 0.0 kPa
Min Operating Temperature 0 °F / -18 °C
Seal Materials Buna-N
Wrench Size 5/8 In / 16 mm
Wrench Size 16 mm / 5/8 in
End 1 Connector
1/8" Female NPT (ASME B1.20.1)
End 2 Connector
Female Quick-test

The product images shown may represent the range of product, or be for illustration purposes only and may not be an exact representation of the product
