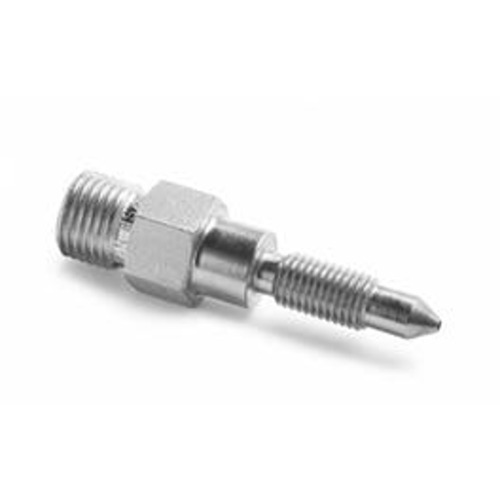

QTHA-FRS0 RALSTON 5/16"-24 UNF X MALE QT NO VALVE SS

Code: 37079

Status: Out of Stock

US$49.07
EACH (1)

FEATURES

FEATURES

Connect a Quick-test hose directly to a DP transmitter or gauge valve using the bleeder port when the transmitter is not mounted on a 3 valve manifold or gauge valve or when the manifold is not easily accessible.

SPECIFICATIONS

SPECIFICATIONS

Length 2.16 in / 55 mm
Width 0.56 in / 15 mm
Compatible with Rosemount 2051 Series DP Pressure Transmitters, Rosemount 3051 Series DP Pressure Transmitters, Yokogawa EJ series DP Pressure Transmitters, Anderson Greenwood M25 Block and Bleed Valves, Anderson Greenwood M251 Block and Bleed Valves, Foxboro (by Schneider Electric) IDP10, Foxboro (by Schneider Electric) IDP15, Foxboro (by Schneider Electric) IDP31, Foxboro (by Schneider Electric) IDP32, Foxboro (by Schneider Electric) IMV25
Country of origin USA
Materials Stainless Steel
Max Operating Temperature 140 °F / 60 °C
Max Pressure 5000 PSI / 350 bar / 35 MPa
Max Vacuum 0 InHg / 0.0 kPa
Media Compatibility Air, Inert Gas, Natural Gas, Petroleum Based Oil, Water
Min Operating Temperature 0 °F / -18 °C
Seal Materials Buna-N
Wrench Size 9/16 In / 15 mm
Wrench Size 15 mm / 9/16 in
End 1 Connector
5/16-24 Male DP Transmitter/Gauge valve
End 2 Connector
Male Quick-test

The product images shown may represent the range of product, or be for illustration purposes only and may not be an exact representation of the product
