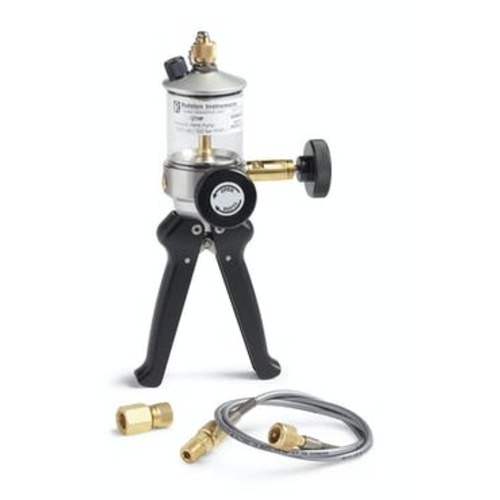

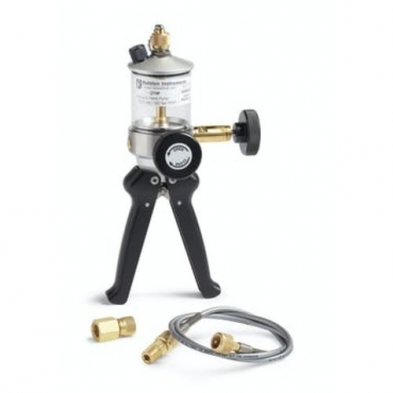

QTHP-2FBA RALSTON 5000 PSI HYDRAULIC HAND PUMP

Code: 37083

Status: In Stock

US$967.44
EACH (1)

FEATURES

FEATURES

5kpsi / 35 MPa Hydraulic hand pump, 2 Quick-test outlet ports, 3 ft hose, 1/4" FNPT gauge conn., 1/4" MNPT Process conn.

  • Hand Pump: QTHP Hydraulic Hand Pump
  • Reference Connection: 1/4" female NPT x female Quick-test, no check-valve, brass
  • Process Connection: 1/4" male NPT x male Quick-test, no check-valve, brass
  • Hose: Quick-test 6900 psi hose, brass hose ends, 3 ft (92 cm) long

SPECIFICATIONS

SPECIFICATIONS

Hose 1 Quick-test Hose, Stainless Steel ends, 3ft / 0.9m long
Process Connection 1/4" Male NPT
Reference Connection 1/4" Female NPT
Country of origin USA

Hand Pump QTHP

Weight 2.93 lbs / 1.33 kg
Length 5.7 in / 15 cm
Width 6 in / 16 cm
Height 10.6 in / 27 cm
Burst Pressure 20000 PSI / 1380 bar / 140 MPa
Country of origin USA
Fine Adjustment Resolution .01 PSI / 0.07 mbar / 0.00 kPa
Harmonized Code 8413.20.0000
Materials Anodized Aluminum, Brass, Stainless Steel, Polysulfone
Max Operating Temperature 140 °F / 60 °C
Max Pressure 5000 PSI / 350 bar / 35 MPa
Media Compatibility Alcohol, Antifreeze, Ethylene Glycol, Hydraulic Oil, Mineral Oil, Petroleum Based Oil, Windshield washer fluid, Transmission fluid, Light motor oil, Ralston Calibration Oil
Min Operating Temperature -29 °F / -34 °C
Outlet Port
Male Quick-test, Male Quick-test
Pressure Media Liquid
Reservoir Volume 4.2 fl. oz
Seal Materials Buna-N, Teflon

Reference Connection QTHA-2FBA

Length 1.52 in / 39 mm
Width 0.75 in / 20 mm
Country of origin USA
Materials Brass
Max Operating Temperature 225 °F / 105 °C
Max Pressure 5000 PSI / 350 bar / 35 MPa
Max Vacuum 0 InHg / 0.0 kPa
Wrench Size 3/4 In / 20 mm
Wrench Size 19 mm / 23/32 in
End 1 Connector
1/4" Female NPT (ASME B1.20.1)
End 2 Connector
Female Quick-test

Process Connection QTHA-2MB0

Length 1.29 in / 33 mm
Width 0.56 in / 15 mm
Burst Pressure 20000 PSI / 1380 bar / 140 MPa
Country of origin USA
Materials Brass
Max Operating Temperature 225 °F / 105 °C
Max Pressure 5000 PSI / 350 bar / 35 MPa
Max Vacuum 0 InHg / 0.0 kPa
Min Operating Temperature 0 °F / -18 °C
Seal Materials Buna-N
Wrench Size 9/16 In / 15 mm
Wrench Size 15 mm / 9/16 in
End 1 Connector
1/4" Male NPT (ASME B1.20.1)

INCLUDES

INCLUDES

QTHP Hydraulic Hand Pump

Hand Pump

QTHP

1/4" female NPT x female Quick-test, no check-valve, brass

Reference Connection

QTHA-2FBA

1/4" male NPT x male Quick-test, no check-valve, brass

Process Connection

QTHA-2MB0

Quick-test 6900 psi hose, brass hose ends, 3 ft (92 cm) long

Hose

QTQT-HOS-3ft

Bottle with flip top for Hydraulic pump fluid, empty

Bottle with flip top for Hydraulic pump fluid, empty

QTHP-BOTL

The product images shown may represent the range of product, or be for illustration purposes only and may not be an exact representation of the product
