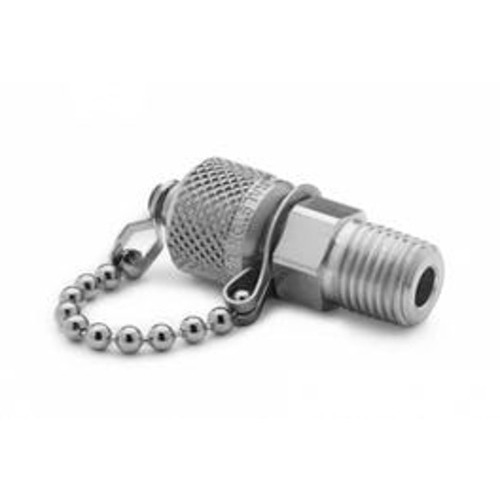

QTFT-2MS0 RALSTON 1/4" MNPT X MALE QT W/ CAP & CHAIN SS

Code: 37086

Status: In Stock

US$43.57
EACH (1)

FEATURES

FEATURES

A removable cap provides easy access to connect a Quick-test hose to the process for calibration purposes and is easily sealed bubble-tight again when calibration is complete

SPECIFICATIONS

SPECIFICATIONS

Length 1.85 in / 47 mm
Width 0.71 in / 19 mm
Country of origin USA
Has Cap and Chain Yes
Materials Stainless Steel
Max Operating Temperature 225 °F / 105 °C
Max Pressure 5000 PSI / 350 bar / 35 MPa
Max Vacuum 0 InHg / 0.0 kPa
Seal Materials Buna-N
Wrench Size 9/16 In / 15 mm
Wrench Size 15 mm / 9/16 in
End 1 Connector
1/4" Male NPT (ASME B1.20.1)
End 2 Connector
Male Quick-test
End 2 Cap and Chain Yes

The product images shown may represent the range of product, or be for illustration purposes only and may not be an exact representation of the product
