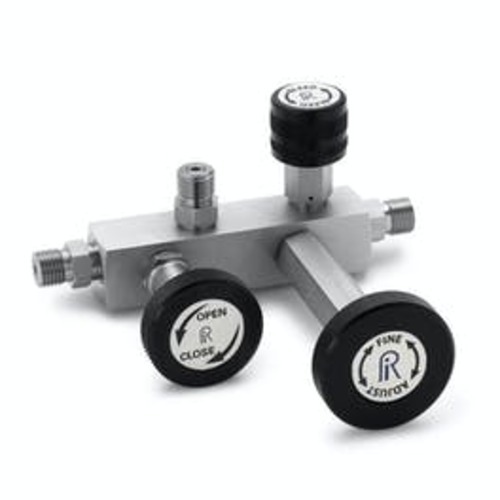

QSCM-0000-0-0 RALSTON QSCM MANIFOLD ONLY NO ACCS.

Code: 37092

Status: Out of Stock

US$547.89
EACH (1)

FEATURES

FEATURES

The most economical way of performing static pressure calibrations in the field using nitrogen or other compressed gas.

  • Manifold: QSCM Stainless Steel Calibration Manifold

SPECIFICATIONS

SPECIFICATIONS

Country of origin USA
Hose 1 None
Hose 2 None
Pressure Reference None
Process Connection None
Reference Connection None
Max Pressure 5000 PSI / 350 bar / 35 MPa
Materials Stainless Steel
Seal Materials Buna-N, Delrin, Teflon
Min Operating Temperature 0 °F / -18 °C
Max Operating Temperature 130 °F / 54 °C

Manifold QSCM

Weight 2.20 lbs / 1000 grams
Length 3.8 in / 97 mm
Width 5.1 in / 13 cm
Height 2.3 in / 59 mm
Inlet Port Male Quick-test
Media Compatibility Air, Inert Gas, Natural Gas
Outlet Port Male Quick-test
Seal Materials Buna-N, Delrin, Teflon
Burst Pressure 20000 PSI / 1380 bar / 140 MPa
Materials Anodized Aluminum, Stainless Steel
Max Pressure 5000 PSI / 350 bar / 35 MPa
Max Vacuum 0 InHg / 0.0 kPa
Min Operating Temperature 0 °F / -18 °C
Max Operating Temperature 130 °F / 54 °C
Fine Adjustment Resolution 0.1 PSI / 0.69 mbar / 0.00 kPa
Country of origin USA
Pressure Media Nitrogen, inert gas
Harmonized Code 9032.81.0060

INCLUDES

INCLUDES

QSCM Stainless Steel Calibration Manifold

Manifold

QSCM

ADDITIONAL INFO

ADDITIONAL INFO

Replacement Parts





QSCM manifold only, no gauge adapter, no hoses, no process connections, no bag replacement parts
QTCM, QSCM manifold repair kit

QTCM, QSCM manifold repair kit

QTCM-REPK

QSCM bleed valve assembly, S.S.

QSCM bleed valve assembly, S.S.

QSCM-0020

QSCM calibration manifold body, S.S.

QSCM calibration manifold body, S.S.

QSCM-0024

QSCM fill valve assembly, S.S.

QSCM fill valve assembly, S.S.

QSCM-0025

QSCM Fine adjust vernier assembly, S.S.

QSCM Fine adjust vernier assembly, S.S.

QSCM-0027

Male Quick-test outlet port, S.S.

Male Quick-test outlet port, S.S.

QTHA-3SS0
