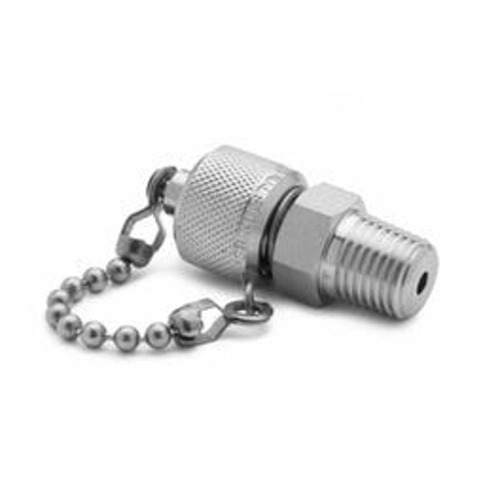

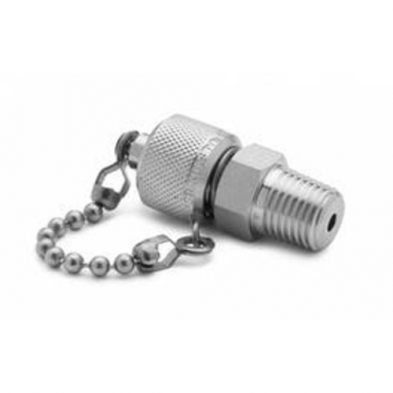

XTFT-2MS0 RALSTON 1/4" MNPT X MALE QT XT W/ CAP & CHAIN SS

Code: 37542

Status: Out of Stock

US$90.60
EACH (1)

FEATURES

FEATURES

Connects Female NPT to Quick-test XT 10,000 psi hoses for permanent installation

SPECIFICATIONS

SPECIFICATIONS

Length 1.85 in / 47 mm
Width 0.75 in / 20 mm
Country of origin USA
Materials Stainless Steel
Max Operating Temperature 225 °F / 105 °C
Max Pressure 10000 PSI / 700 bar / 70 MPa
Min Operating Temperature 0 °F / -18 °C
Seal Materials Teflon, Viton
Wrench Size 5/8 In / 16 mm
Wrench Size 16 mm / 5/8 in
End 1 Connector
Male Quick-test XT
End 1 Cap and Chain Yes
End 2 Connector
1/4" Male NPT (ASME B1.20.1)

The product images shown may represent the range of product, or be for illustration purposes only and may not be an exact representation of the product
