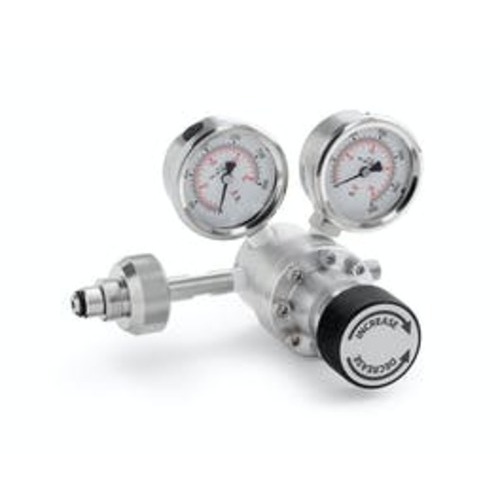

XREG-KIT0 RALSTON REG. 3K PSI CGA 580 MALE QT CONN KIT

Code: 37561

Status: In Stock

US$1,126.10
EACH (1)

FEATURES

FEATURES

Piston sensed pressure reducing regulator for use in providing a stable pressure to precision pressure control devices.

  • Adapter 1: CGA 580 Quick-connect x 1/4" Male NPT adapter, S.S.
  • Adapter 2: 1/4" male NPT x male Quick-test, no check-valve, S.S.
  • Regulator: XREG Pressure Regulator
  • Pressure Gauge: 2.5" 3000 PSI / 200 bar gauge, 1/4" MNPT lower mount
  • Pressure Gauge: 2.5" 3000 PSI / 200 bar gauge, 1/4" MNPT lower mount

SPECIFICATIONS

SPECIFICATIONS

Process Connection CGA 580
Max Pressure 3000 PSI / 200 bar / 20 MPa
Materials Anodized Aluminum, Stainless Steel
Seal Materials Buna-N, Delrin, Teflon
Country of origin USA
Gauge 1 3000 PSI / 200 bar gauge, 1/4" Male NPT lower mount, +/- 2/1/2% full scale accuracy
Gauge 2 3000 PSI / 200 bar gauge, 1/4" Male NPT lower mount, +/- 2/1/2% full scale accuracy
Dial Size 2.5 In / 64 mm
Max Operating Temperature 130 °F / 54 °C
Min Operating Temperature 0 °F / -18 °C

Adapter 1 QTHA-2MS0-C580-QD

Certifications CGA 580 (USA)
Country of origin USA
Materials Stainless Steel
Max Operating Temperature 225 °F / 105 °C
Max Pressure 5000 PSI / 350 bar / 35 MPa
Media Compatibility Air, Alcohol, Antifreeze, Ethylene Glycol, Hydraulic Oil, Inert Gas, Mineral Oil, Natural Gas, Petroleum Based Oil, Skydrol, Windshield washer fluid, Transmission fluid, Light motor oil, Ralston Calibration Oil, Water
Min Operating Temperature 0 °F / -18 °C
Seal Materials Buna-N, Urethane
End 1 Connector
580 Male CGA 580
End 1 Quick Disconnect Yes
End 2 Connector
1/4" Male NPT (ASME B1.20.1)

Adapter 2 QTHA-2MS0

Length 1.29 in / 33 mm
Width 0.56 in / 15 mm
Country of origin USA
Materials Stainless Steel
Max Operating Temperature 225 °F / 105 °C
Max Pressure 5000 PSI / 350 bar / 35 MPa
Max Vacuum 0 InHg / 0.0 kPa
Min Operating Temperature 0 °F / -18 °C
Seal Materials Buna-N
Wrench Size 9/16 In / 15 mm
Wrench Size 15 mm / 9/16 in
End 1 Connector
1/4" Male NPT (ASME B1.20.1)
End 2 Connector
Male Quick-test

Regulator XREG

Harmonized Code 8481.10.0040
Max Pressure 3000 PSI / 200 bar / 20 MPa
Materials Anodized Aluminum, Stainless Steel
Max Operating Temperature 140 °F / 60 °C
Media Compatibility Air, Inert Gas
Min Operating Temperature 0 °F / -18 °C
Seal Materials Buna-N, Delrin, Teflon
Country of origin USA

Pressure Gauge ST-0026

Accuracy - Pressure Measurement +/- 3/2/3% of Full Scale (ASME B40.100 Grade B)
Country of origin USA
Measurement Type Gauge Pressure
Process Connection
1/4" Male NPT (ASME B1.20.1)

The product images shown may represent the range of product, or be for illustration purposes only and may not be an exact representation of the product
