E-10 10,000PSI 1-5V 1/2NPT 1/2C 6' FE (4365378)

Code: 11711

Status: Out of Stock

US$416.86
EACH (1)

SPECIFICATIONS

SPECIFICATIONS

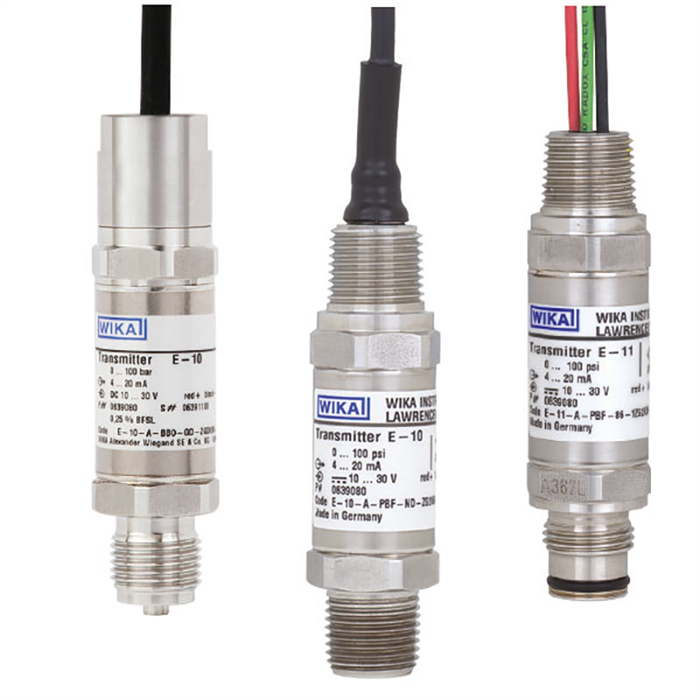

Type E-10 - Explosion Proof Pressure Transmitter
- NPT
Material of Wetted Parts: stainless steel
Case: stainless steel
Output signal: 1 ... 5 V, 3-wire
Pressure Range: 0 ... 10000 psi
Process Connection: 1/2 NPT
Special Design Features: low power
Electrical Connection: 1/2" NPT male conduit with free ends
Cable Length: 6 ft
Power supply: 6...30 V DC
pin assignment el. connection: UB=RD, 0V=BK, S+=BN
explosionproof Class I, II, III, Div. 1 per FM and CSA
Import documentation CIS-States: without
Accuracy: 0.5% of span
Pressure port: Standard

The product images shown may represent the range of product, or be for illustration purposes only and may not be an exact representation of the product
